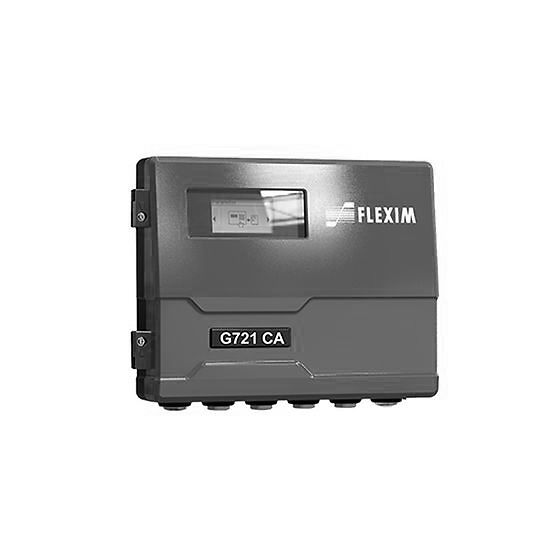

Flexim FLUXUS G721 CA Compressed Air Flow Meter (Obsolete)
Release time：2025-10-15 10:50:31 publisher：小编 Page View：
Flexim FLUXUS G721 CA Compressed Air Flow Meter (Obsolete)
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
- Fluid type
- Air, nitrogen, oxygen, helium, argon
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1…2 % of reading ±0,005 m/s (±0.02 ft/s)
- Repeatability
- 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
- Flow Channels
- up to 2
- Range
- Flow Velocity Range: 0,01…35 m/s (0.03 to 115 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
PESO
KOSHA
- Power supply
- 100-230VAC
24VDC
12VDC
- Pipe size
- 10 to 250 mm (0.39 to 9.8 inch)
- Pressure range
- 1barg (15 psig) to unlimited
- Temperature range (media)
- -40 to +130°C (-40 to +266°F)
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
- Input
- Temperature
4-20mA active/passive
binary
voltage
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- Non-intrusive compressed air and technical gas flow measurement from 3 bar absolute onwards.
- Available as a dual channel meter, stainless steel housing, ATEX/IECEx and FM approval.
- Integrated standard volume flow calculation.
- Extreme measurement dynamics from lowest to highest flow velocities - easy detection of leakages and load peaks.
- Bi-directional measurement, able to detect back-flow
- Simple and cost-effective retrofitting without shut down.
- USB and LAN interface.
- Communication interfaces Modbus TCP, Modbus RTU, BACnet MS/TP, BACnet IP, M-Bus.
- Advanced Meter Verification.
