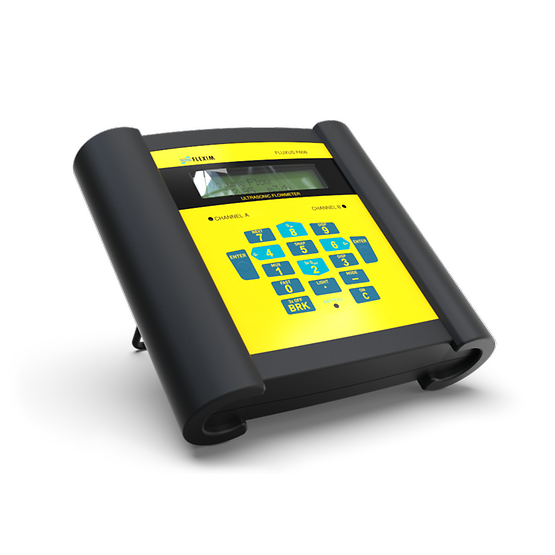

Flexim FLUXUS G608 Portable Ultrasonic Gas Flow Meter for Hazardous Areas
Product Description
The Flexim FLUXUS G608 portable gas flow meter is based on the widely used, highly reliable and versatile G601, but has been specifically engineered for use within hazardous areas and is FM Class I Division 2 approved. It can be used whether for a temporary replacement of a stationary flow meter, check metering or service operations. Due to its certification, users are freed from obtaining a hot work permit, making access to hazardous areas much easier and less time consuming. An extremely resistant carbon fiber housing, together with its rugged transducer design, give the G608 high impact protection as well as resistance against oil, water and many other liquids.
Specifications
- Accuracy
- Measurement uncertainty at the measuring point (volumetric flow rate): ±1…3 % of reading ±0.02 ft/s
- Repeatability
- 0.15 % of reading ±0.02 ft/s
- Range
- Flow Velocity Range: 0.03 to 115 ft/s, depending on pipe diameter
- Certifications/Approvals
- FM Class I /Div 2
- Power Supply
- Li-ION 7.2V/6.2Ah Operat. time >25h
- Transducers Available
- Shear wave/Lamb wave
- Pipe Size
- 0.28 inch to 63 inch
- Temperature Range
- -40°F to +392°F
- Input
- Pt100/Pt1000
- System Configuration and Installation
- For more detailed Information please download the Technical Specifications
Features
- Instantly in service.
Direct access to hazardous areas.
Fast and easy set-up (less than 5 minutes)
Automatic transducer recognition.
Intuitive user guidance. - Highly versatile.
Unrivalled application range.
Superior accuracy even with media containing solids.
Integrated high capacity Li-Ion battery (more than14 hours of remote measuring) - Accurate and reliable.
All transducers are wet calibrated.
High precision during high and low flow rates.
No temperature and zero drift.
