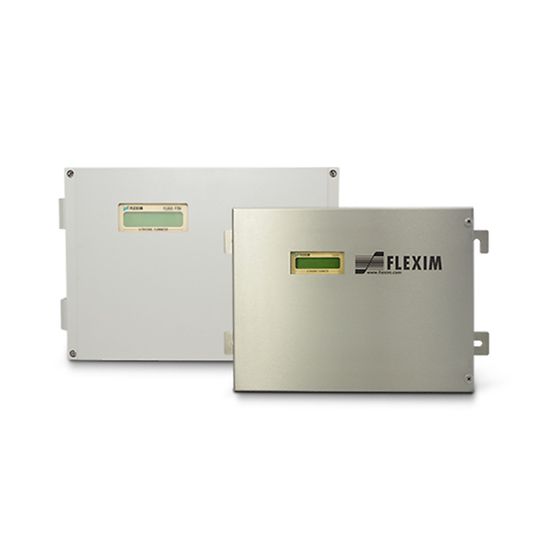

Flexim FLUXUS G70X SIL Functional Safety
Release time：2025-10-14 10:52:02 publisher：小编 Page View：
Product Description
The Flexim FLUXUS G70X SIL flow meter is an ideal choice when it comes to maintaining accurate measurements in harsh conditions - e.g. during the flow measurement of highly pressurised, aggressive, toxic or highly explosive gaseous media. The SIL 2 certification of the G70X SIL non-intrusive flow meter includes the entire measuring system - the measuring transmitters and transducers.
Specifications
- Fluid type
- All gases
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.5 % of reading ±0,01 m/s (±0.03 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1…3 % of reading ±0,01 m/s (±0.03 ft/s)
- Repeatability
- 0.15 % of reading ±0,01 m/s (±0.03 ft/s)
- Flow Channels
- up to 2
- Range
- Flow Velocity Range: 0,01…35 m/s (0.03 to 115 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
NEPSI
PESO
KOSHA
- Power supply
- 100-230VAC
- Pipe size
- 7 to 1600 mm (0.28 to 63 inch)
- Pressure range
- 1barg (15 psig) to unlimited
- Temperature range (media)
- -40 to +240°C (-40 to +464°F)
- Output
- 4-20mA active/passive
binary
- Input
- -
- Communication Protocol
- RS232
Features
- Simple retrofitting during ongoing operation.
Ideal for a subsequent increase in safety.
Ideal for maintaining the protective function should an inline measurement fail. - Comprehensive certification.
Transducers, clamp device and electronics are part of the FMEDA. - Extremely wide range of applications.
Transducers and measuring transmitters for the flow measurement of gases. - Straightforward retesting.
Easy functional tests in no time at all.
Convincing self-diagnosis functions. - Transparent evaluations.
Publication of FMEDA report.
Full information on certification procedures and scope.
