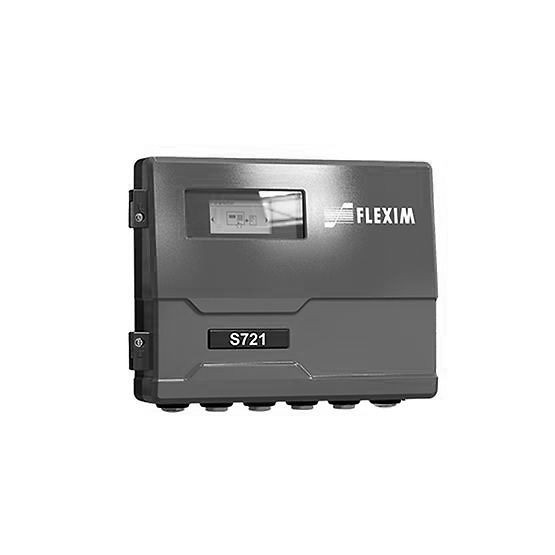

Flexim PIOX S721 - Ultrasonic Mass Flow Meter for Liquids
Release time：2025-10-16 10:04:53 publisher：小编 Page View：
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
- Measuring Quantities
- Mass flow
- Accuracy
- Measurement uncertainty (volumetric flow): ± 1 % of reading ±0.02 ft/s*
- Repeatability
- 0,1 w%* (0,5m/s)
- Range
- Flow Velocity Range: 0.03 to 82 ft/s
- Certifications/Approvals
- ATEX/IECEx Zone 1/Zone 2
FM Class I - Div2
- Power supply
- 100-230VAC, 24DC, 12DC
- Transducers Available
- Shear wave
- Pipe Size
- 0.24 inch to 255.9 inch
- Temperature Range
- -40°F to +392°F / WI: -328°F to +1112°F**
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
- Input
- Pt100/Pt1000
4-20mA active/passive
Binary input
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System Configuration and Installation
- For more detailed Information please download the Technical Specifications
* For most waterbased solutions and common working point
** additional wave injector required
Features
- For all pipe materials - glass, steel, plastic and more
- For almost all acids, caustics and a wide range of other toxic liquids
- For ATEX, IECEX and FM areas
- No shut down for installation
- Maintenance free
