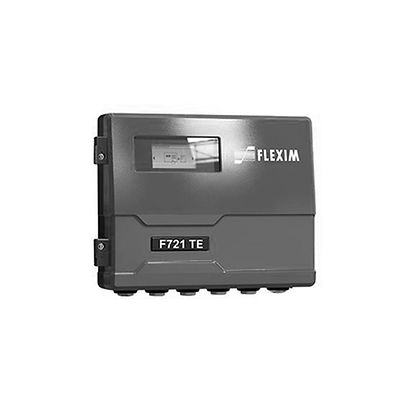

Flexim FLUXUS F721 TE - Heat and Cold Metering in any Environment (Obsolete)
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs
Specifications
- Fluid type
- Water, water-glycol, typical heat transfer fluids
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1 % of reading ±0,005 m/s (±0.02 ft/s)
- Repeatability
- 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
- Flow Channels
- up to 2
- Range
- Flow Velocity Range: 0,01…25 m/s (0.03 to 82 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
PESO
KOSHA
- Power supply
- 100-230VAC
24VDC
12VDC
- Pipe size
- 10 to 2400 mm (0.39 to 94.5 inch)
- Pressure range
- -
- Temperature range (media)
- -40 to +240°C (-40 to +464°F)
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
- Input
- Temperature
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- Virtually unlimited application range - even at extreme temperatures from -200 up to +630 °C (-328 up to +1166 °F).
- Integrated thermal energy calculation.
- Highly accurate flow measurement with paired and traceable calibrated ultrasonic transducers.
- Highly accurate temperature measurement with paired and traceable calibrated temperature sensors (according to DIN EN 1434-1).
- Extremely high measuring dynamics from the lowest to the highest flow velocities - captures even the slightest flows at nighttime.
- Simple, cost-effective retrofitting without any disruption to supply.
- Tamper-proof storage of measuring data.
- Advanced Meter Verification.
