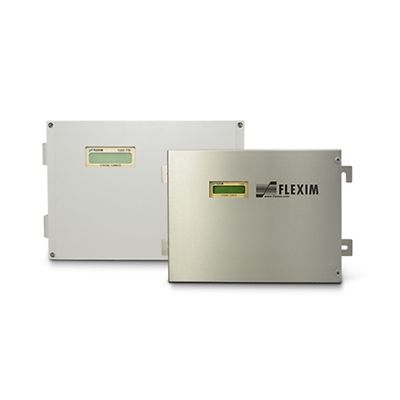

Flexim FLUXUS F70X SIL Functional Safety Flow
Release time：2025-10-14 10:09:45 publisher：小编 Page View：
Product Description
The Flexim FLUXUS F70X SIL flow meter has always been the first choice when it comes to maintaining accurate measurements in harsh conditions - e.g. during the flow measurement of highly pressurised, aggressive, toxic or highly explosive liquid media. The SIL 2 certification of the F70X SIL non-intrusive flow meter includes the entire measuring system - the measuring transmitters and transducers.
Specifications
- Certifications/Approvals
- FLUXUS F70X: FM Class I, Div. 1, ATEX, IECEx Zone 1 approval, IP66, aluminium or stainless steel housing variants - suitable for offshore use
- Measuring Quantities
- volume flow rate, mass flow rate, flow velocity
- Operating Temperature
- Transmitter: 14 °F ... 140 °F
- Certifications/Approvals
- up to NEMA4X (IP68), radiation resistant transducers available
- Temperature Range
- Pipe Wall: -40°F ... 390°F (-275°F ... 1100 °F with high temperature WaveInjector mounting fixture)
- Range
- Flow Velocity Range: 0.03 ... 80 ft/sec
- Pipe Size
- 1/4 inch ... 500 inches
- Uncertainty
- Measurement uncertainty of the measuring system (volumetric flow rate): With standard calibration: ±1.6 % of reading ±0.01 m/s
With advanced calibration (optional): ±1.2 % of reading ±0.01 m/s
With field calibration: ±0.5 % of reading ±0.01 m/s
- Accuracy
- ± 0,5% of reading ± 0,01 m/s
- Repeatability
- ± 0.5% of reading ± 0.03 ft/s
- Capacity
- Data Logger: >100,000 values: all quantities, summed measurings and diagnostics
- Communication Protocol
- Modbus RTU
- Power Supply
- 100 to 240 V AC / 50 to 60 Hz or 20 to 32 V DC
Features
- Simple retrofitting during ongoing operation.
Ideal for a subsequent increase in safety.
Ideal for maintaining the protective function should an inline measurement fail. - Comprehensive certification.
Transducers, clamp device and electronics are part of the FMEDA. - Extremely wide range of applications.
Transducers and measuring transmitters for the flow measurement of liquids.
SIL certification also covers WaveInjector® technology for the flow measurement of liquids at extreme temperatures of -200 to +630 °C (-328 to 1,160 °F). - Straightforward retesting.
Easy functional tests in no time at all.
Convincing self-diagnosis functions. - Transparent evaluations.
Publication of FMEDA report.
Full information on certification procedures and scope.
