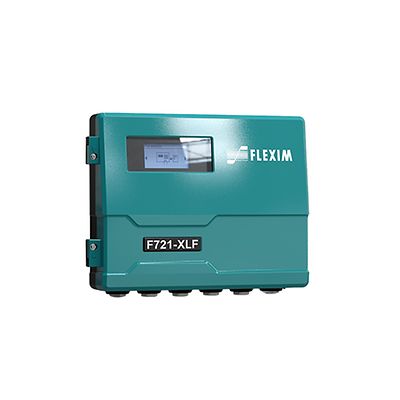

Flexim FLUXUS F721XLF
Product Description
The Flexim FLUXUS F721XLF is a non-intrusive metering system for the repeatable and long-term reliable measurement of extremely low flow liquid rates down to 6 L/h (1 gal/h) and below on line sizes, ranging from 0.4 inch to 2 inches independent of the pipe wall thickness and pressure ranges. Available both in aluminum and stainless-steel housing with ATEX/IECEx zone 2, and FM Class I Division 2 certifications, this low flow ultrasonic flow meter offers advanced data processing capabilities, sophisticated signal filters, bi-directional communication protocols and in-house system factory calibration to achieve highly accurate and repeatable measurements of extremely low flows.
Specifications
- Fluid type
- All liquids
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,0006 m/s (±0.002 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1 % of reading ±0,0006 m/s (±0.002 ft/s)
- Repeatability
- 0.15 % of reading ±0,0006 m/s (±0.002 ft/s)
- Flow Channels
- 1
- Range
- Depending on pipe size
- Certifications/Approvals
- -
- Power supply
- 100-230VAC
24VDC
12VDC
- Pipe size
- 10 to 2400 mm (0.39 to 94.5 inch)
- Pressure range
- -
- Temperature range (media)
- -40 to +130°C (-40 to +266°F)
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
- Input
- Temperature
4-20mA active/passive
binary
voltage
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- No potential for leaks.
- Completely maintenance-free.
- Accurate and highly repeatable low flow measurement.
- Applicable to any pipe and any liquid media.
- Rugged and hazardous area approved transducers and transmitters (ATEX/IECEx Zone 2, and FM Class I Division 2).
- Matched transducers, advanced digital signal processing (DSP) and efficient algorithms ensure stable measurements at very low flows.
- Advanced Meter Verification.
