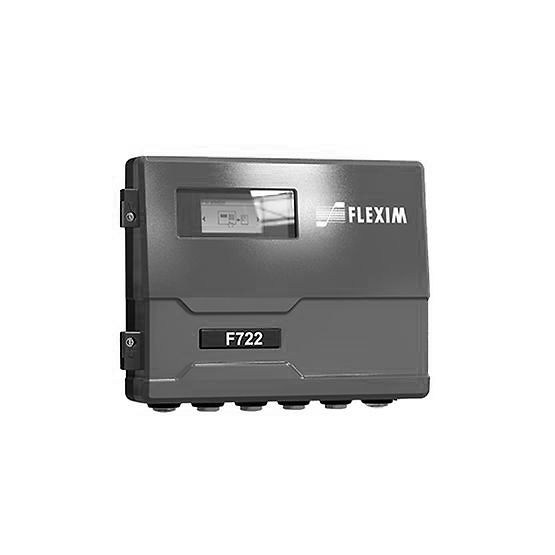

Flexim FLUXUS F722 - Non-Intrusive Synchronized Channel Averaging (SCA) Flow Meter
Release time：2025-10-14 10:15:40 publisher：小编 Page View：
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
- Fluid type
- All liquids
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1 % of reading ±0,005 m/s (±0.02 ft/s)
- Repeatability
- 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
- Flow Channels
- up to 2
- Range
- Flow Velocity Range: 0,01…25 m/s (0.03 to 82 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
PESO
KOSHA
- Power supply
- 100-230VAC
24VDC
12VDC
- Pipe size
- 6 to 6500 mm (0.24 to 255.9 inch)
- Pressure range
- -
- Temperature range (media)
- -40 to 200°C (-40 to +392°F) / WI: -200 to +630°C (-328 to +1166°F)
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
- Input
- Temperature
4-20mA active/passive
binary
voltage
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- Accuracy and repeatability - exceptional reliability and accuracy at high and low flows due to matched, calibrated and temperature compensated transducers, advanced signal processing capabilities and diagnostics.
- Easy installation without process interruptions - an externally mounted system means no need for process interruptions or additional engineering costs.
- Maintenance-free. No contact with flowing media results in a virtually maintenance-free and durable metering solution able to withstand the harshest environments.
- Operational safety - no leak paths, no fugitive emissions.
- Advanced Meter Verification.
