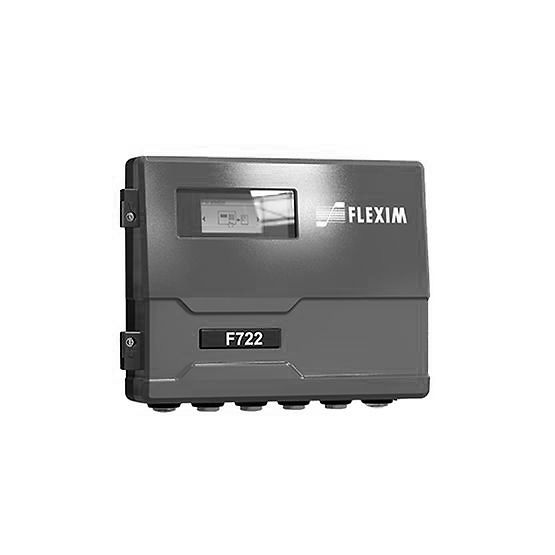

Flexim FLUXUS F722 - Non-Intrusive Synchronized Channel Averaging (SCA) Flow Meter (Obsolete)
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
Fluid typeAll liquids
AccuracyMeasurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1 % of reading ±0,005 m/s (±0.02 ft/s)
Repeatability0.15 % of reading ±0,005 m/s (±0.02 ft/s)
Flow Channelsup to 2
RangeFlow Velocity Range: 0,01…25 m/s (0.03 to 82 ft/s), depending on pipe diameter
Certifications/ApprovalsFM Class I /Div 2
ATEX/IECEx Zone 2
PESO
KOSHA
Power supply100-230VAC
24VDC
12VDC
Pipe size6 to 6500 mm (0.24 to 255.9 inch)
Pressure range-
Temperature range (media)-40 to 200°C (-40 to +392°F) / WI: -200 to +630°C (-328 to +1166°F)
Output4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
InputTemperature
4-20mA active/passive
binary
voltage
Communication ProtocolModbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
System configuration and installationFor more detailed Information please download the Technical Specifications
Features
Accuracy and repeatability - exceptional reliability and accuracy at high and low flows due to matched, calibrated and temperature compensated transducers, advanced signal processing capabilities and diagnostics.
Easy installation without process interruptions - an externally mounted system means no need for process interruptions or additional engineering costs.
Maintenance-free. No contact with flowing media results in a virtually maintenance-free and durable metering solution able to withstand the harshest environments.
Operational safety - no leak paths, no fugitive emissions.
Advanced Meter Verification.
