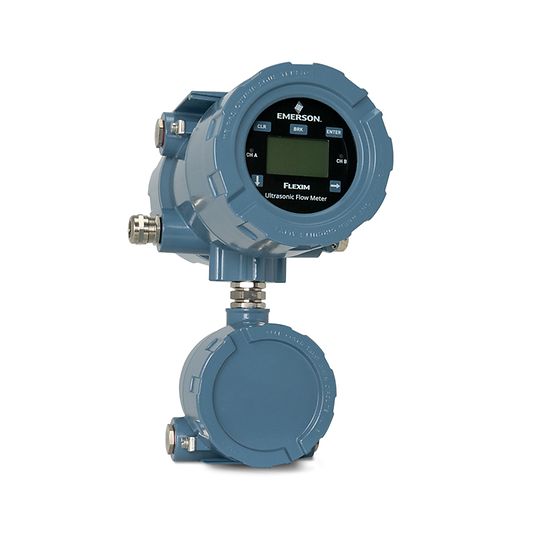

Flexim FLUXUS F831PW - Permanent Flow Meter for Process Water in Hazardous Zones
Product Description
The Flexim FLUXUS F831PW is a dual channel ultrasonic clamp-on flow meter for bi-directional flow measurement of process water produced water and cooling water applications in hazardous areas (ATEX/IECEx Zone 1 and FM Class I Division 1 approved). With its explosion proof housing, optional intrinsically safe inputs and outputs and the corrosion resistant transducers residing outside the pipe wall, the FLUXUS F831PW meter is perfectly suited for every demanding industrial application in and out of the oil field and the chemical industry. The connection and electronics compartments of the FLUXUS F831PW are hermetically sealed, and the flow meter comes with carefully matched and temperature compensated transducers (fully ANSI / ASME MFC 5M compliant) providing unmatched zero-point stability.
Specifications
Fluid typeWater, seawater, produced water, water/glycol mixtures
AccuracyMeasurement uncertainty of the measuring system (volumetric flow rate): ±,0.3 % of reading ±,0.005 m/s (±,0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±, 1 % of reading ±,0.005 m/s (±,0.02 ft/s)
Repeatability0.15 % of reading ±,0.005 m/s (±,0.02 ft/s)
Flow channelsUp to 2
RangeFlow Velocity Range: 0,01…25 m/s (0.03 to 82 ft/s), depending on pipe diameter
Certifications/approvalsFM Class I/Div. 1
FM Class 1/Div. 2
ATEX/IECEx Zone 1
INMETRO
NEPSI
PESO
KOSHA
Power supply100-230VAC
20-32VDC
Pipe size6 to 6500 mm (0.24 to 255.9 inch)
Pressure range-
Temperature range (media)-40 to +240 °,C (-40 to +464 °,F)
Output4-20mA active/passive (optional Ex-ia)
4-20mA HART active/passive (optional Ex-ia)
pulse/frequency/binary
InputTemperature (optional Ex-ia)
4..20mA (optional Ex-ia active)
Communication protocolModbus RTU
BACnet MSTP
Profibus PA (optional Ex-ia)
Foundation Fieldbus (optional Ex-ia)
System configuration and installationFor more detailed information please download the Technical Specifications
Features
Very cost-effective: no pipe work, no process shut-down, virtually maintenance-free.
Matched, paired and wet calibrated flow transducers (traceable certification to national standards).
Excellent zero-point stability and drift-free.
Independent of pipe size, material, operating pressure, medium and temperature.
High tolerance to entrained solids and gases.
Free of wear and tear and abrasion.
Not prone to clogging or corrosion.
No pressure loss or risk of potential leaks and fugitive emissions.
Advanced Meter Verification.
