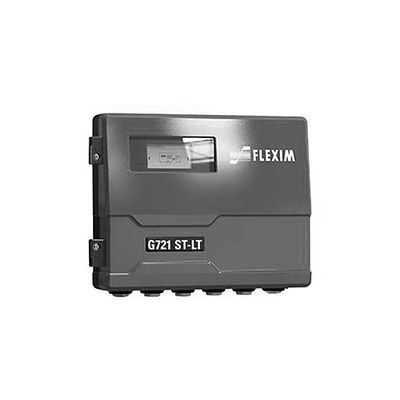

Flexim FLUXUS G721 ST-LT Non-Intrusive Steam Flow Measurement (Obsolete)
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
- Fluid type
- Saturated and superheated steam
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1…3 % of reading ±0,005 m/s (±0.02 ft/s)
- Repeatability
- 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
- Flow Channels
- up to 2
- Range
- Flow Velocity Range: depending on pipe diameter and transducer
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
PESO
KOSHA
- Power supply
- 100-230VAC
24VDC
12VDC
- Pipe size
- 23 to 1000 mm (0.9 to 39.4 inch)
- Pressure range
- 3 to 10 barg (44…145 psig)
- Temperature range (media)
- +135 to +180°C (+275 to +356°F)
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
- Input
- Temperature
4-20mA active/passive
binary
voltage
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- SCA - Synchronized Channel Averaging function for difficult measuring points.
- Transmitters available for FM Class I Division 2 and IECEx/ATEX Zone 2.
- Stainless steel housing available.
- Non-intrusive measuring principle.
- Installation, commissioning and maintenance without process interruption.
- Extremely high measuring dynamics - no need to reduce pipe diameters.
- No flow range limitations - 0.01 to 60 m/s (0.03 to 197 ft/s).
- Zero loss of pressure - zero loss of energy.
- Bi-directional measurement.
- Integrated mass flow measuring through the saturated steam curve and online measuring of temperature.
- Advanced Meter Verification.
