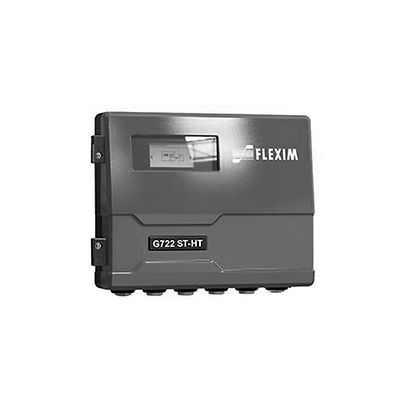

Flexim FLUXUS G722 ST-HT High-temperature Steam Measurement (Obsolete)
Release time：2025-10-15 10:34:40 publisher：小编 Page View：
Flexim FLUXUS G722 ST-HT High-temperature Steam Measurement (Obsolete)
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
- Fluid type
- Saturated and superheated steam
- Accuracy
- Measurement uncertainty at the measuring point (volumetric flow rate): ±3…4 % of reading
- Repeatability
- ± 1…3 % of reading
- Flow Channels
- 2
- Range
- Flow Velocity Range: depending on the application
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
PESO
KOSHA
- Power supply
- 100-230VAC
24VDC
12VDC
- Pipe size
- 10 to 900 mm (0.39 to 35.4 inches)
- Pressure range
- 1 to 220 barg (15…3190 psig)
- Temperature range (media)
- +100 to +630°C (+212 to +1166 °F)
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
- Input
- Temperature
4-20mA active/passive
binary
voltage
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- No pressure loss, no pipe modification, no process interruption.
- High dynamic flow range.
- Easy and cost-efficient retrofit.
