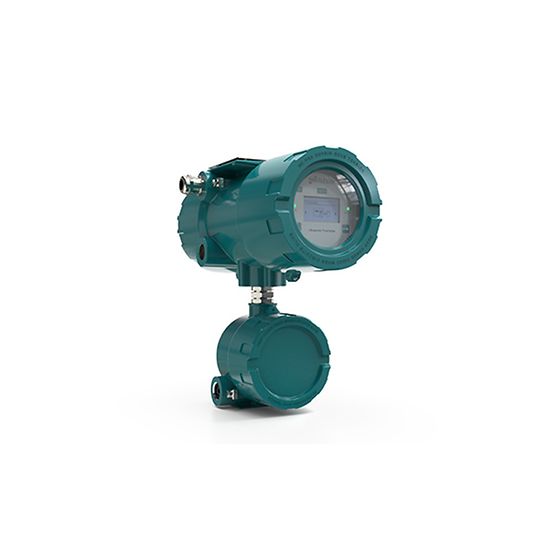

Flexim FLUXUS G831 ST-LT Non-Intrusive Steam Flow Measurement for Hazardous Areas
Flexim FLUXUS G831 ST-LT Non-Intrusive Steam Flow Measurement for Hazardous Areas
Product Description
The Flexim FLUXUS G831 ST-LT measures steam flow non-intrusively from the outside of the pipe in hazardous areas (ATEX/IECEx Zone 1 and FM Class I Division 1 approved). It is highly sensitive even at very low flow velocities and functions independently of the flow direction. Due to this large flow range (flow velocities from 0.01 to 60 m/s / 0.03 to 197 ft/s), there is no need to reduce the pipe diameter to fit an inline meter's requirement of minimum flow velocity. Moreover, the non-intrusive measurement does not cause any pressure loss, and the transducer mountings can be completely insulated to reduce any heat loss to the environment. With FLUXUS G831 ST-LT it is possible to capture all steam usage from very low to very high flow rates with one meter size.
Specifications
- Fluid Type
- Saturated and superheated steam
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ± 1…2 % of reading ±0,005 m/s (±0.02 ft/s)
- Repeatability
- 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
- Flow channels
- up to 2
- Range
- Flow Velocity Range: 0,01 to 60 m/s (0.03 to 197 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I/Div. 1
FM Class 1/Div. 2
ATEX/IECEx Zone 1
INMETRO
NEPSI
PESO
KOSHA
- Power supply
- 100-230VAC
20-32VDC
- Pipe size
- 23 to 1000 mm (0.9 to 39.4 inch)
- Pressure range
- 3 to 10 barg (44…145 psig)
- Temperature range (media)
- +135 to +180°C (+275 to +356°F)
- Output
- 4-20mA active/passive (optional Ex-ia)
4-20mA HART active/passive (optional Ex-ia)
pulse/frequency/binary
- Input
- Temperature (optional Ex-ia)
4..20mA (optional Ex-ia active)
- Communication Protocol
- Modbus RTU
BACnet MSTP
Profibus PA (optional Ex-ia)
Foundation Fieldbus (optional Ex-ia)
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- High dynamic flow range even at low flow velocities.
- No pipe diameter reduction - zero pressure loss.
- Integrated mass flow measurement.
- Advanced Meter Verification.
